Frequency response range (± 3dB): 65-20khz

Power (program / peak): 400 / 800W

Impedance: 16ohm

Sensitivity 1W / 1m: 99dB

Interface: speakon Ni4, Pin2 connected

Overall dimension (H x W x D): 500x355x275mm

Weight: 16.7kg

Coating: polyurea paint

Unit type: 1x15 "

Frequency response range (+ 3dB): 40-150Hz

Power (program / peak): 600/1200W

Impedance: 8Ohm

Sensitivity 1W/1M:96dB

Maximum sound pressure level (1M): 126dB

Interface: 2 Speakon NI4, Pin2 connected

Shape size (high x width x deep): 446x500x560mm

Weight: 23kg/25.3kg

Coating: polyurea spray paint

18-inch high-end linear bass speaker,

Unit composition:

Bass 100 core 18 "*1, neodymium magnet

Frequency range (-10dB) 30HZ-2khz

Frequency range (-3dB) 35HZ-1.8khz

Coverage Angle: 360 spherical wave

Maximum rated sound pressure level 1368db@1m

The nominal impedance of the speaker is 8Ohm

Rated input power 650W

Peak input power: 2600W

The system recommends 1000 ~ 1200W power

amplifier

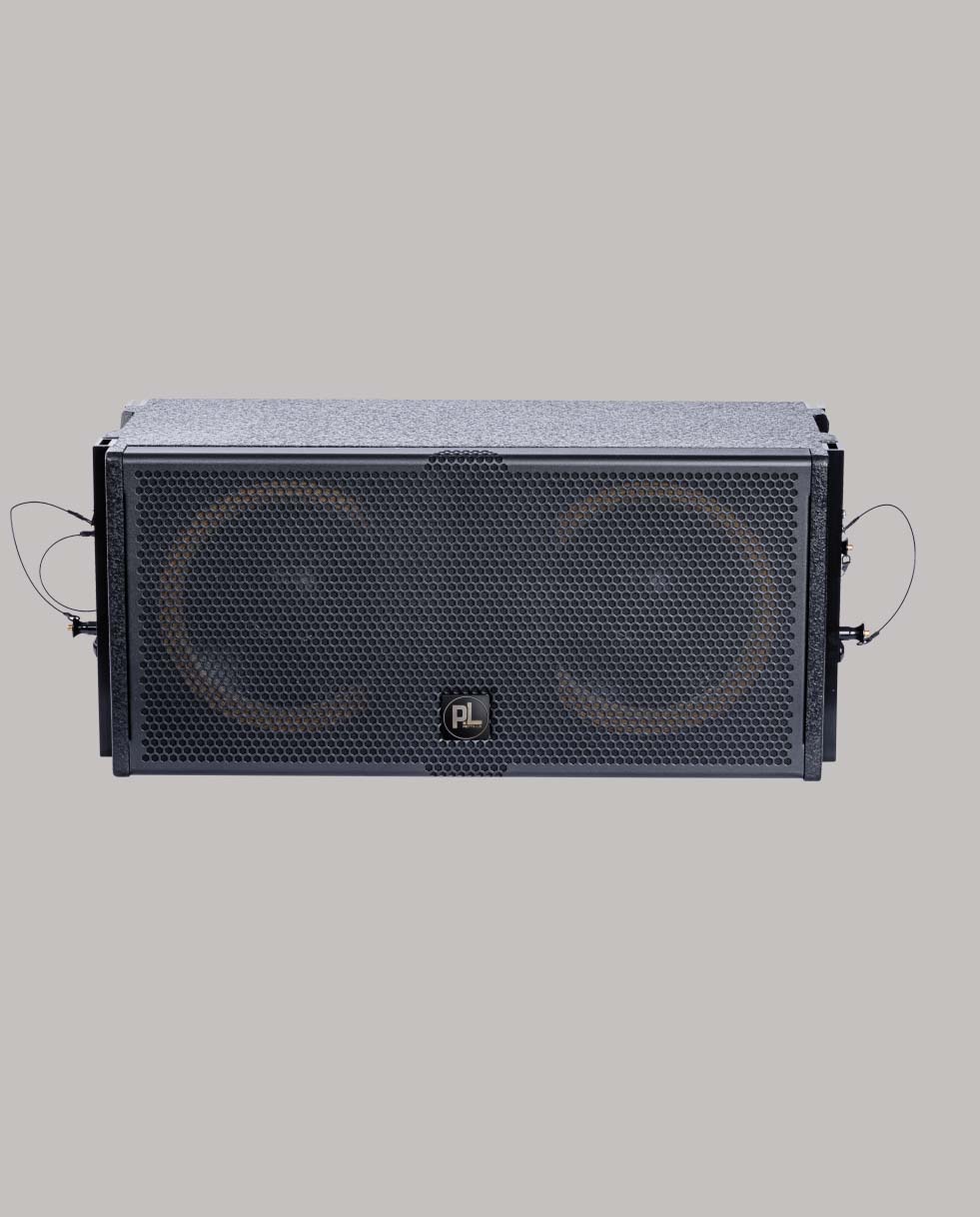

Double ten-inch high-end linear array speaker,
Frequency range (-10dB) 50HZ-20khz
Frequency range (-3dB) 55HZ-20khz
Covering Angle 90 ×50
Maximum rated sound pressure level 132db@1m
The nominal impedance of the speaker is 16 Ohm
Rated input power 600W
Peak input power: 2400W
The system recommended power amplifier 800 ~ 1000W

Frequency response of 55 hz - 20 KHZ - 10 db
Power rate low frequency: 450 watts (Max. 900 watts)
High frequency: 80 watts (Max. 160 watts)
Maximum sound pressure (SPL) Full frequency: 139 dB (peak)
Standard impedance: 8 ohms
High frequency: 8 ohms
Cover Angle 110 degrees (fixed) * 0 degrees -10 degrees -6dB
Seat 2 X NEUTRIK Nl4
Accessory hanging system
Volume (width * height * depth)730mm x 250/165mm x 482mm
Weight (each) 26 kg

Technical parameters of imported treble birch deck German waterborne paint
Unit type: 2 x 10 "LF neodymium magnet
2 x 7 "MF / 2 x 2.5" HF neodymium magnet
Frequency range (±3dB) : 48-18000Hz
Rated power (program/peak) : 1000/2000 W LF 800/1600 MHF
Impedance: 8 Ohm LF 8 Ohm MHF
Cover Angle (horizontal x vertical) :80 ° or 120° x 10°
Sensitivity 1W/1M: 98 dB LF 110dB MHF
Maximum pressure level (1M) : 141dB
Overall dimension (height x width x depth) : 310 x 700 x 580 mm
Weight: 38 kg

Description of technical parameters: passive bisection fixed curvature "WST 10 °

● available frequency response range (- 10b) 42hz-20khz ([A15])

● maximum sound pressure level: 141db ([A15])

● nominal directivity box: 30 °

● diffusion angle: symmetrical 70 ° / 110 ° or asymmetric 90 °

● unit LF: 1 × 15 "NdFeB speaker

● subwoofer, neodymium magnet, power: 600W (8 Ω), sensitivity: 97dB (LMS. 1m.1w test), impedance: 8 Ω, voice coil 100 core, frequency response range: 50Hz -- 2KHz,

● tweeter, neodymium magnet, power, 110W (8 Ω) HF: 1 × 3 "diaphragm neodymium compression driver B & C unit

● acoustic load LF: low frequency reflection, inverted HF: dosc waveguide, hinge horn

● nominal impedance 8 Ω

● socket in: 1 × 4 point speak0N

● wooden box size 425mm * 755mm * 495mm Weight (net weight) 35kg

Technical parameter description passive frequency division fixed curvature wst30 °

● available frequency response range (- 10b) 42hz-20khz ([A15])

● maximum sound pressure level: 141db ([A15])

● nominal directivity box: 30 °

● diffusion angle: symmetrical 70 ° / 110 ° or asymmetric 90 °

● unit LF: 1 × 15 "NdFeB speaker

● subwoofer, neodymium magnet, power: 600W (8 Ω), sensitivity: 97dB (LMS. 1m.1w test), impedance: 8 Ω, voice coil 100 core, frequency response range: 50Hz -- 2KHz,

● tweeter, neodymium magnet, power, 110W (8 Ω) HF: 1 × 3 "diaphragm neodymium compression driver B & C unit

● acoustic load LF: low frequency reflection, inverted HF: dosc waveguide, hinge horn

● nominal impedance 8 Ω

● socket in: 1 × 4 point speak0N

● wooden box size 425mm * 755mm * 495mm Weight (net weight) 33kg
