Rated Sensitivity: 98dB(dB SPL.1Watt@1m)

Maximum SPL: 123dB continuous/126dB peak

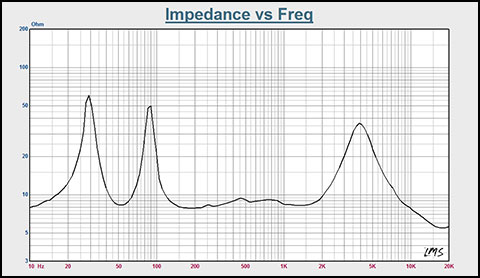

Nominal Impedance (Nominal Impedance) : 8Ohms

Rated Power: 350W AES/700W Peak

Dispersion Angle (+/-8dB): 70°*100°(HxV)

Frequency response range (+/-3dB): 47-20000Hz

Appearance size (W*H*D) : 360*600*382(mm)

Net weight: 19Kg

● Special formula of ndfeb unit has a very high magnetic flux density, ability to bring strong driver drive unit and wide dynamic range, and ensures that the high-frequency transparent, delicate and soft.

● Low frequency for special magnetic steel high power long stroke drive unit, with the air gap cooling technology (VGC) magnetic circuit system, under the condition of high power for a long time use to keep good heat dissipation effect.

● Carefully designed frequency divider, USES the advanced passive crossover network design, minimize high and low frequency overlap, optimize the expressive force of vocals, the recoverable PTC protector high protection technology.

● Box body which is produced by the multi-layer birch plywood with high quality, in the interior with a number of special reinforcement, strengthening the overall soundness of the enclosure, can in large

● Upscale nightclub, senior clubs, high-grade self-service KTV, multi-function hall and other places of the music and singing.
