Power :400W-800W(8Ω),

Sensitivity: 97db(dB SPL.1Watt@1m)

Impedance: 8Ω, impedance

Frequency(+/-3dB): : 53HZ--20KHZ,

Appearance size (W*H*D): 360mm*600mm*382mm.

Net Weight: 22.5KG/ piece.

● 12 "* 1,1.75" * 1 full frequency box, tweeter unit adopts American custom BIC unit, middle frequency is round, sweet and full, high frequency is soft and delicate; The bass unit adopts the original BIC bass from the United States, the unique magnetic circuit short-circuit ring technology, the low frequency is deep and thick, and the sense of encircle is strong.

 Audio splitter for manual welding, fine operation, Spain´s top audio capacitance, high power resistance, large wire diameter high purity copper wire winding inductance.

 ● wooden case surface using the most popular spray paint spraying process. The rear invert structure of the box makes more efficient use of low-frequency energy

 ● waterproof and breathable mesh cloth is pasted inside the iron network, which can effectively reduce odd harmonics, enhance visual beauty, increase the fidelity and softness of sound.

 ● covering Angle: W100°*H70°

Suitable for about 35 square square luxury box \HI room

        KC-12 frequency response curve

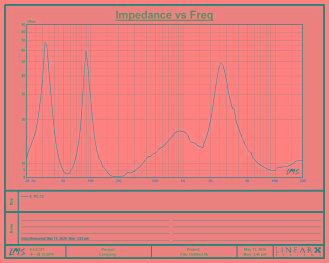

             KC-12 impedance curve
